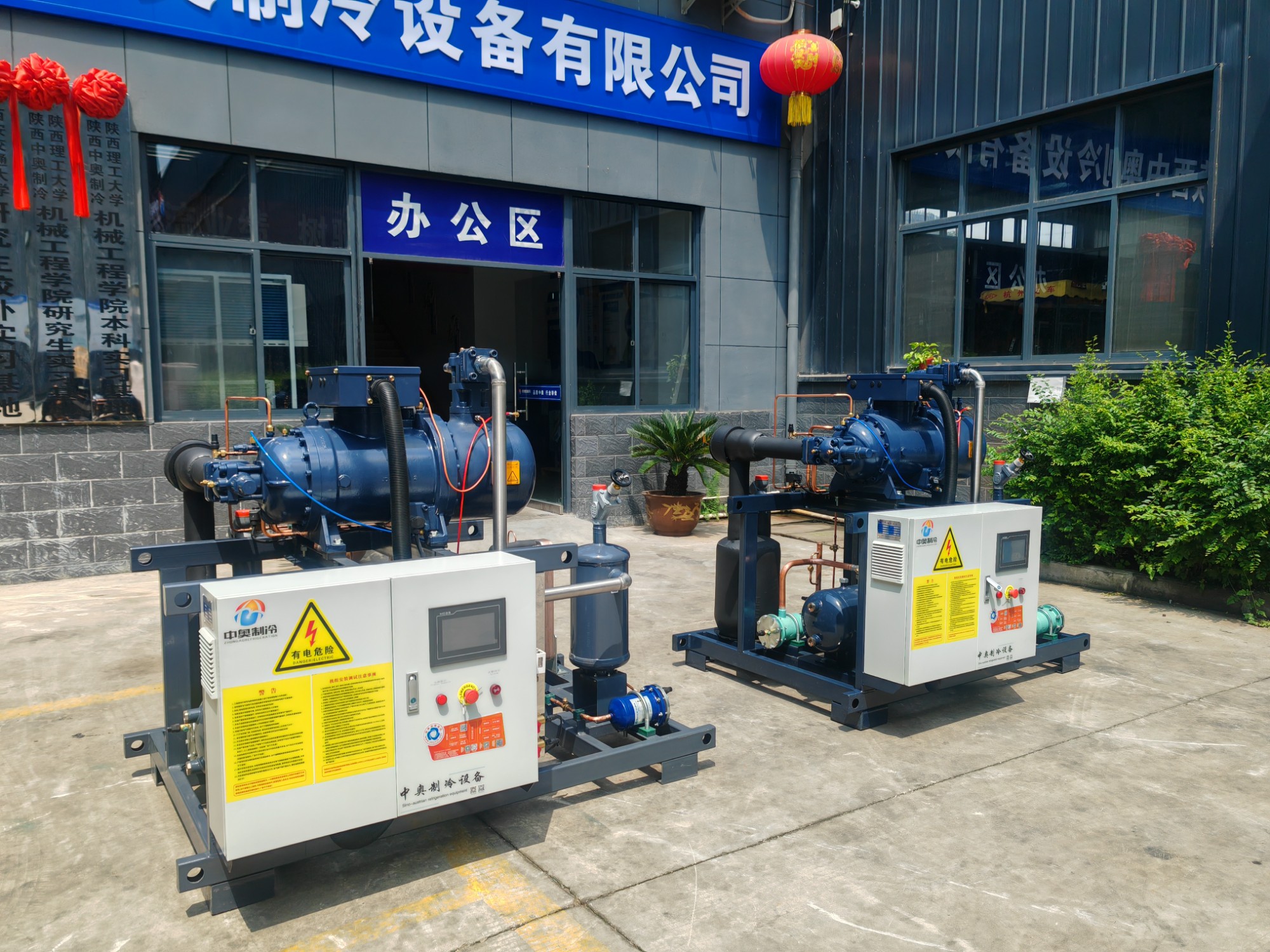

HANBELL high-temperature screw compressor unit
- Product Item : HANBELL high-temperature screw compressor unit
- Category： Screw refrigeration unit
- Compressor brand: FHANBELL
- Style: Semi-hermetic screw compressor
- Temp. Range(°C):-15~5
- Application area: Cold room, blast freezer room
Main Components:
· Screw Compressor· Feed pipe ball valve
· Oil Controller
· Condenser
· Filter Barrel
· Spray System
· Sight Glass
· Control Box (PLC)
· Pressure gauge
· Pressure controller
· Pressure Sensor
· Inhale filter
|
Unit Model
|
Compressor Model |
Compressor
Number
|
Condensinc
Temp.(℃)
|
Evaporation Temp.(℃) |
Reservoir
(L)
|
Supply
pipe
(mm）
|
Suction
pipe
(mm）
|
Gas Outiet
(mm)
|
Liquid
nletpipe
(mm)
|
Dimension(mm)
(L×W×H)
|
|||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Cooling Capacity/Power Input (kw) | |||||||||||||||||||
| ZADLH-30R-G |
RC2-100DM
(30HP)
|
1 | 35 | 47.1 | 18.7 | 38.1 | 19.4 | 70.6 | 20.1 | 85.2 | 20.7 | 101.2 | 21.2 | 80 | Φ28 | Φ54 | Φ42 | Φ35 | 1700×900×1100 |
| 40 | 43.8 | 20.4 | 34.1 | 21.2 | 66.4 | 22.0 | 80.3 | 22.7 | 96.4 | 23.3 | |||||||||
| 45 | 40.3 | 22.2 | 50.0 | 23.1 | 61.6 | 24.0 | 74.8 | 24.8 | 90.4 | 25.3 | |||||||||
| ZADLH-40R-G |
RC2-140DM
(40HP)
|
1 | 35 | 65.1 | 24.4 | 80.2 | 25.4 | 97.6 | 26.3 | 117.8 | 271.0 | 141.0 | 27.8 | 80 | Φ28 | Φ54 | Φ42 | Φ35 | 1730×700×1100 |
| 40 | 60.7 | 26.6 | 74.9 | 27.7 | 91.7 | 28.7 | 110.9 | 29.6 | 133.2 | 30.4 | |||||||||
| 45 | 55.9 | 29.1 | 69.3 | 30.3 | 85.2 | 31.4 | 103.4 | 32.5 | 124.9 | 33.4 | |||||||||
| ZADLH-50R-G |
RC2-180DM
(50HP)
|
1 | 35 | 85.9 | 30.3 | 105.3 | 31.5 | 128.1 | 32.6 | 154.6 | 33.6 | 185.1 | 34.5 | 100 | Φ35 | Φ67 | Φ42 | Φ35 | 2300×900×1100 |
| 40 | 79.8 | 33.1 | 98.4 | 34.4 | 120.4 | 35.7 | 145.6 | 36.8 | 174.8 | 37.8 | |||||||||
| 45 | 73.6 | 36.1 | 91.1 | 37.6 | 112.3 | 39.0 | 136.2 | 40.3 | 163.9 | 41.5 | |||||||||
| ZADLH-55R-G |
RC2-200DM
(55HP)
|
1 | 35 | 91.9 | 33.6 | 113.1 | 34.9 | 137.6 | 36.1 | 166.1 | 37.3 | 198.9 | 38.2 | 100 | Φ42 | Φ76 | Φ42 | Φ54 | 2300×900×1100 |
| 40 | 85.7 | 36.6 | 105.7 | 38.1 | 129.4 | 39.5 | 156.5 | 40.8 | 187.8 | 41.9 | |||||||||
| 45 | 78.9 | 40.0 | 97.8 | 41.6 | 120.2 | 43.2 | 146.3 | 44.7 | 176.1 | 46.0 | |||||||||
| ZADLH-60R-G |
RC2-230DM
(60HP)
|
1 | 35 | 114.1 | 33.6 | 140.5 | 44.2 | 170.9 | 45.8 | 206.3 | 47.3 | 247.1 | 48.4 | 150 | Φ35 | Φ76 | Φ54 | Φ35 | 2300×900×1250 |
| 40 | 106.3 | 46.4 | 131.2 | 48.3 | 160.7 | 50.0 | 194.4 | 51.7 | 233.3 | 53.1 | |||||||||
| 45 | 97.9 | 50.7 | 121.4 | 52.8 | 149.3 | 54.7 | 181.7 | 56.6 | 218.8 | 58.2 | |||||||||
| ZADLH-70R-G |
RC2-260DM
(70HP)
|
1 | 35 | 123.4 | 43.8 | 151.3 | 45.6 | 184.1 | 47.2 | 222.2 | 448.7 | 266.1 | 49.9 | 150 | Φ35 | Φ76 | Φ54 | Φ35 | 2300×900×1250 |
| 40 | 114.7 | 47.9 | 141.5 | 49.8 | 173.1 | 51.6 | 209.3 | 53.3 | 251.3 | 54.7 | |||||||||
| 45 | 105.7 | 52.3 | 130.9 | 54.4 | 161.4 | 56.4 | 195.7 | 58.3 | 235.6 | 60.0 | |||||||||
| ZADLH-75R-G |
RC2-300DM
(75HP)
|
1 | 35 | 145.4 | 50.5 | 178.3 | 52.5 | 216.9 | 54.4 | 261.8 | 56.1 | 313.6 | 57.5 | 200 | Φ57 | Φ89 | Φ67 | Φ67 | 2300×900×1250 |
| 40 | 135.3 | 55.2 | 167.3 | 57.4 | 203.9 | 59.5 | 246.6 | 61.4 | 296.1 | 63.1 | |||||||||
| 45 | 127.4 | 60.3 | 154.4 | 62.7 | 190.1 | 65.1 | 230.6 | 67.3 | 277.6 | 69.2 | |||||||||
| ZADLH-80R-G |
RC2-310DM
(80HP)
|
1 | 35 | 153.7 | 53.8 | 188.4 | 55.9 | 229.2 | 57.9 | 276.6 | 59.7 | 331.6 | 61.2 | 200 | Φ35 | Φ76 | Φ54 | Φ35 | 2600×900×1400 |
| 40 | 142.9 | 58.7 | 176.8 | 61.1 | 215.5 | 63.3 | 260.6 | 65.3 | 312.8 | 67.1 | |||||||||
| 45 | 131.7 | 64.1 | 163.1 | 66.7 | 200.9 | 69.2 | 243.7 | 71.6 | 293.3 | 73.6 | |||||||||
| ZADLH-90R-G |
RC2-340DM
(90HP)
|
1 | 35 | 171.1 | 58.0 | 209.8 | 60.3 | 255.2 | 62.5 | 308.0 | 64.4 | 368.9 | 66.1 | 200 | Φ42 | Φ108 | Φ67 | Φ54 | 2600×850×1400 |
| 40 | 159.3 | 63.4 | 196.8 | 65.9 | 239.9 | 68.3 | 290.1 | 70.5 | 348.3 | 72.4 | |||||||||
| 45 | 146.9 | 69.2 | 181.8 | 72.0 | 223.7 | 74.7 | 271.3 | 77.2 | 326.6 | 79.5 | |||||||||
| ZADLH-100R-G |
RC2-370DM
(100HP)
|
1 | 35 | 184.3 | 62.7 | 226 | 65.2 | 274.8 | 67.5 | 331.7 | 69.6 | 397.3 | 71.3 | 100 | Φ42 | Φ108 | Φ67 | Φ57 | 2600×850×1400 |
| 40 | 171.5 | 68.4 | 212.0 | 71.5 | 285.4 | 73.8 | 312.5 | 76.2 | 375.1 | 78.3 | |||||||||
| 45 | 158.1 | 74.8 | 195.8 | 77.8 | 240.9 | 80.7 | 292.2 | 83.4 | 351.7 | 85.8 | |||||||||
| ZADLH-110R-G |
RC2-410DM
(110HP)
|
1 | 35 | 200.4 | 69.3 | 245.9 | 72.1 | 298.8 | 67.5 | 360.6 | 77.0 | 432.0 | 78.9 | 250 | Φ42 | Φ108 | Φ67 | Φ54 | 2750×850×1450 |
| 40 | 186.4 | 75.7 | 230.5 | 78.7 | 280.9 | 81.6 | 339.8 | 84.3 | 407.9 | 86.5 | |||||||||
| 45 | 171.8 | 82.7 | 212.8 | 86.0 | 261.9 | 89.3 | 317.7 | 92.3 | 352.8 | 95.0 | |||||||||
| ZADLH-125R-G |
RC2-470DM
(125HP)
|
1 | 35 | 238.6 | 80.1 | 292.5 | 83.3 | 355.8 | 86.3 | 429.4 | 88.9 | 514.3 | 91.2 | 250 | Φ42 | Φ108 | Φ67 | Φ54 | 2750×870×145 |
| 40 | 222.2 | 87.5 | 274.4 | 91.0 | 334.5 | 94.3 | 404.5 | 97.3 | 485.6 | 100.0 | |||||||||
| 45 | 204.8 | 95.5 | 253.6 | 99.4 | 311.9 | 103.1 | 378.3 | 106.6 | 455.3 | 109.7 | |||||||||
