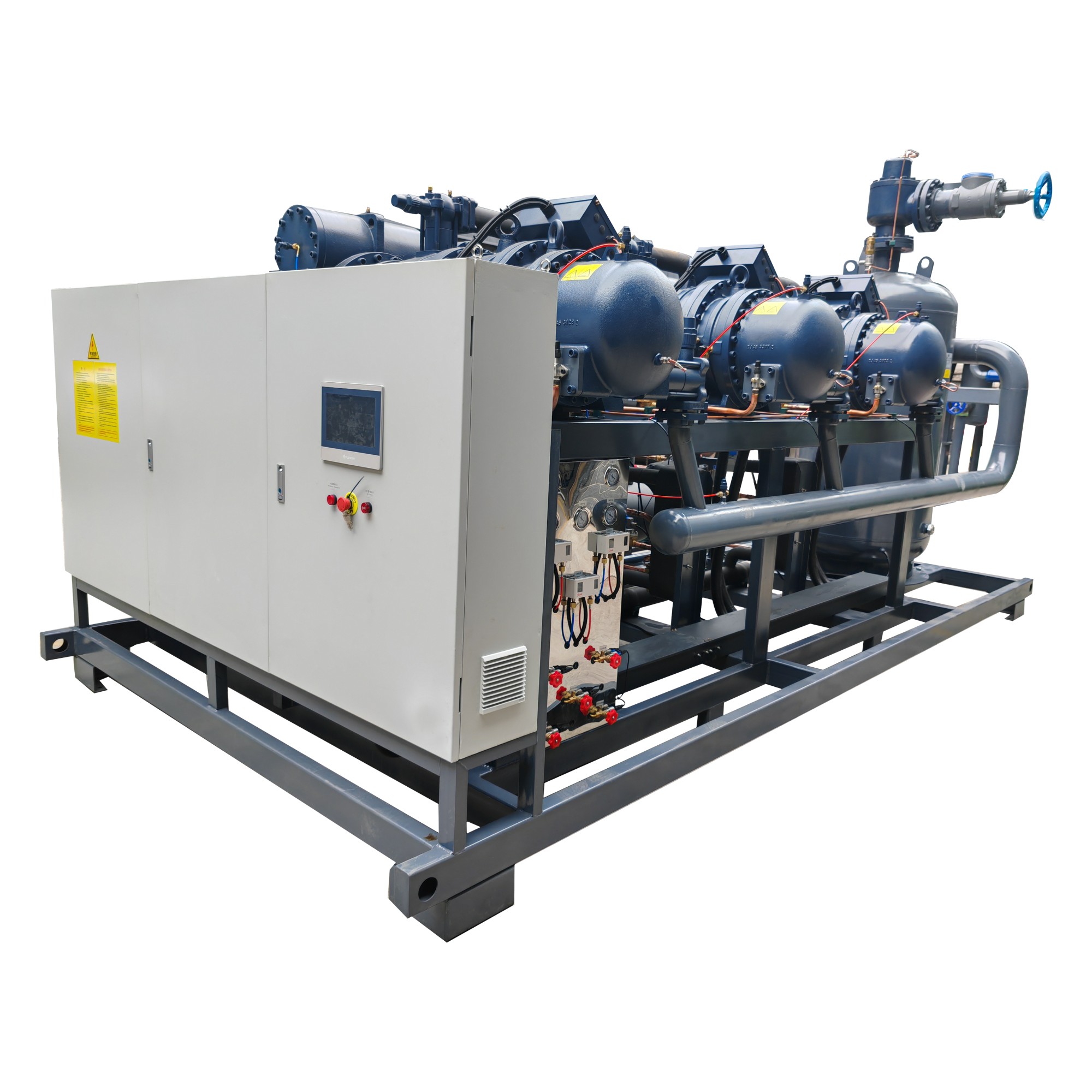

HANBELL high-temperature parallel screw compressor unit

Product Item : HANBELL high-temperature parallel screw compressor
Category： Screw refrigeration unit
Compressor brand: FHANBELL
Style: Semi-hermetic screw compressor
Temp. Range(°C):-15~5
Application area: Cold room, blast freezer room
INQUIRY EMAIL

Main Components:

· Screw Compressor

· Feed pipe ball valve

· Oil Controller

· Condenser

· Filter Barrel

· Spray System

· Sight Glass

· Control Box (PLC)

· Pressure gauge

· Pressure controller

· Pressure Sensor

· Inhale filter

Unit Model	Compressor Model	Compressor Number	Condensinc Temp.(℃)	Evaporation Temp.(℃)										Reservoir (L)	Supply pipe (mm）	Suction pipe (mm）	Gas Outiet (mm)	Liquid nletpipe (mm)	Dimension(mm) (L×W×H)
				-15		-10		-5		0		5
				Cooling Capacity/Power Input (kw)
ZABLH-60R-G	RC2-100DM (30HP)	2	35	94.2	37.4	116.2	38.8	141.2	40.2	170.4	41.4	202.4	42.4	100	Φ35	Φ89	Φ54	Φ35	2300×1700×1800
			40	87.6	40.8	108.2	42.4	132.8	44.0	160.6	45.4	192.8	46.6
			45	80.6	44.4	100.0	46.2	123.2	48.0	149.6	49.6	180.8	50.6
ZABLH-90R-G		3	35	141.3	56.1	174.3	58.2	211.8	60.3	255.6	62.1	306.3	63.6	150	Φ42	Φ89×2	Φ54	Φ42	3000×1700×1800
			40	131.4	61.2	162.3	63.6	199.2	66.0	240.9	68.1	289.2	69.9
			45	120.9	66.6	150.0	69.3	184.8	72.0	224.4	74.4	271.2	75.9
ZABLH-120R-G		4	35	188.4	74.8	232.4	77.6	282.4	80.4	340.8	82.8	408.4	84.8	200	Φ57	Φ108×2	Φ108	Φ76	3700×1700×1800
			40	175.2	81.6	216.4	84.8	265.6	88.0	321.2	90.8	385.6	93.2
			45	161.2	88.8	200.0	92.4	246.4	96.0	299.2	99.2	361.6	101.2
ZABLH-80R-G	RC2-140DM (40HP)	2	35	130.2	48.8	160.4	50.8	195.2	52.6	235.6	54.2	282.0	55.6	150	Φ35	Φ108	Φ54	Φ35	2300×1700×1800
			40	121.4	53.2	149.8	55.4	183.4	57.4	221.8	59.2	266.4	60.8
			45	111.8	58.2	138.6	60.6	170.4	62.8	206.8	65.0	249.8	66.8
ZABLH-120R-G		3	35	195.3	73.2	240.6	76.2	292.8	78.9	353.4	81.3	423.0	83.4	200	Φ42	Φ89×2	Φ76	Φ42	3000×1700×1800
			40	182.1	79.8	224.7	83.1	275.1	86.1	332.7	88.8	399.6	91.2
			45	167.7	87.3	207.9	90.9	255.6	94.2	310.2	97.5	374.7	100.2
ZABLH-160R-G		4	35	260.4	97.6	320.8	101.5	309.4	105.2	471.2	108.4	564.0	111.2	250	Φ57	Φ108×2	Φ108	Φ76	3800×1700×1800
			40	242.8	106.4	299.6	110.8	366.8	114.8	443.6	118.4	532.8	121.6
			45	223.6	116.4	277.2	121.2	340.8	125.6	413.6	130.0	499.6	133.6
ZABLH-100R-G	RC2-180DM (50HP)	2	35	171.8	60.6	210.6	63.0	256.2	65.2	309.2	67.2	370.2	69.0	200	Φ42	Φ108	Φ76	Φ42	2300×1700×1800
			40	159.6	66.2	195.8	88.8	240.8	74.1	291.2	73.6	349.6	75.6
			45	147.2	72.2	182.2	75.2	224.6	78.0	272.4	80.6	327.8	83.0
ZABLH-150R-G		3	35	257.7	90.9	315.9	94.5	384.3	97.8	463.8	100.8	555.3	103.5	250	Φ54	Φ89×2	Φ76	Φ54	3500×1700×1800
			40	239.4	99.3	295.2	103.2	361.2	107.1	436.8	110.4	524.4	113.4
			45	220.8	108.3	273.3	112.8	336.9	117.0	408.6	120.9	491.7	124.5
ZABLH-200R-G		4	35	343.5	121.2	421.2	126.0	512.4	130.4	618.4	134.4	740.4	138.0	300	Φ57	Φ108×2	Φ108	Φ76	4400×1700×1800
			40	319.2	132.4	393.8	137.6	481.6	142.8	582.4	147.2	699.2	151.2
			45	294.4	144.4	364.4	150.4	449.2	156.0	544.8	161.2	655.6	166.0
ZABLH-110R-G	RC2-200DM (55HP)	2	35	183.8	67.2	226.2	69.8	275.2	72.2	332.2	74.6	397.8	76.4	200	Φ57	Φ108	Φ76	Φ76	2330×1700×1100
			40	171.4	73.2	211.4	73.2	258.8	79.0	313.0	81.6	375.6	83.3
			45	157.8	80.0	195.6	83.2	240.4	86.4	292.6	89.4	352.2	92.0
ZABLH-165R-G		3	35	275.7	100.8	399.3	104.7	412.8	108.3	498.3	111.9	596.7	114.6	250	Φ57	Φ89×2	Φ89	Φ76	2300×1700×1800
			40	257.1	109.8	317.1	114.3	388.2	188.5	469.5	122.4	563.4	125.7
			45	236.7	120.2	293.4	124.8	360.6	129.6	438.9	134.1	528.3	138.0
ZABLH-220R-G		4	35	367.6	134.4	452.4	139.6	550.4	144.4	664.4	149.2	795.6	152.8	300	Φ57	Φ108×2	Φ108	Φ76	4400×1700×1800
			40	342.8	146.4	422.8	152.4	517.6	158.0	626.0	163.2	751.2	167.6
			45	315.6	160.0	391.2	166.4	480.8	172.8	585.2	177.8	704.4	184.0
ZABLH-120R-G	RC2-230DM (60HP)	2	35	228.2	85.0	281.0	88.4	341.8	91.6	412.6	94.4	494.2	96.8	200	Φ42	Φ133	Φ76	Φ42	2600×1700×1900
			40	212.6	92.8	262.4	96.6	321.4	100.0	388.8	103.4	466.6	106.2
			45	195.8	101.4	242.8	105.6	298.6	109.4	363.4	113.2	437.6	116.4
ZABLH-180R-G		3	35	342.3	127.5	421.5	132.6	512.7	134.7	618.9	141.6	741.3	145.2	300	Φ54	Φ108×2	Φ76	Φ67	3500×1700×1900
			40	318.9	139.2	393.6	1449	482.1	150.0	583.2	155.1	699.9	159.3
			45	293.7	152.1	364.2	158.4	447.9	164.1	545.1	169.8	656.4	174.6
ZABLH-240R-G		4	35	456.4	170.0	562.0	176.8	683.6	1832	825.2	188.8	988.4	193.6	400	Φ57	Φ133×2	Φ108	Φ89	4400×1700×1900
			40	425.2	185.6	524.8	193.2	642.8	200.0	777.6	206.8	933.2	212.4
			45	391.6	202.8	485.6	211.2	597.2	218.8	726.8	266.4	875.2	232.8
ZABLH-140R-G	RC2-260DM (70HP)	2	35	246.8	87.6	302.6	91.2	368.2	94.4	444.4	97.4	532.2	99.8	200	Φ54	Φ133	Φ76	Φ54	2600×1700×1900
			40	229.4	95.8	283.0	99.6	346.2	103.2	418.6	106.6	502.6	109.4
			45	211.4	104.6	261.8	108.8	322.8	112.8	391.4	116.6	471.2	120.0
ZABLH-210R-G
