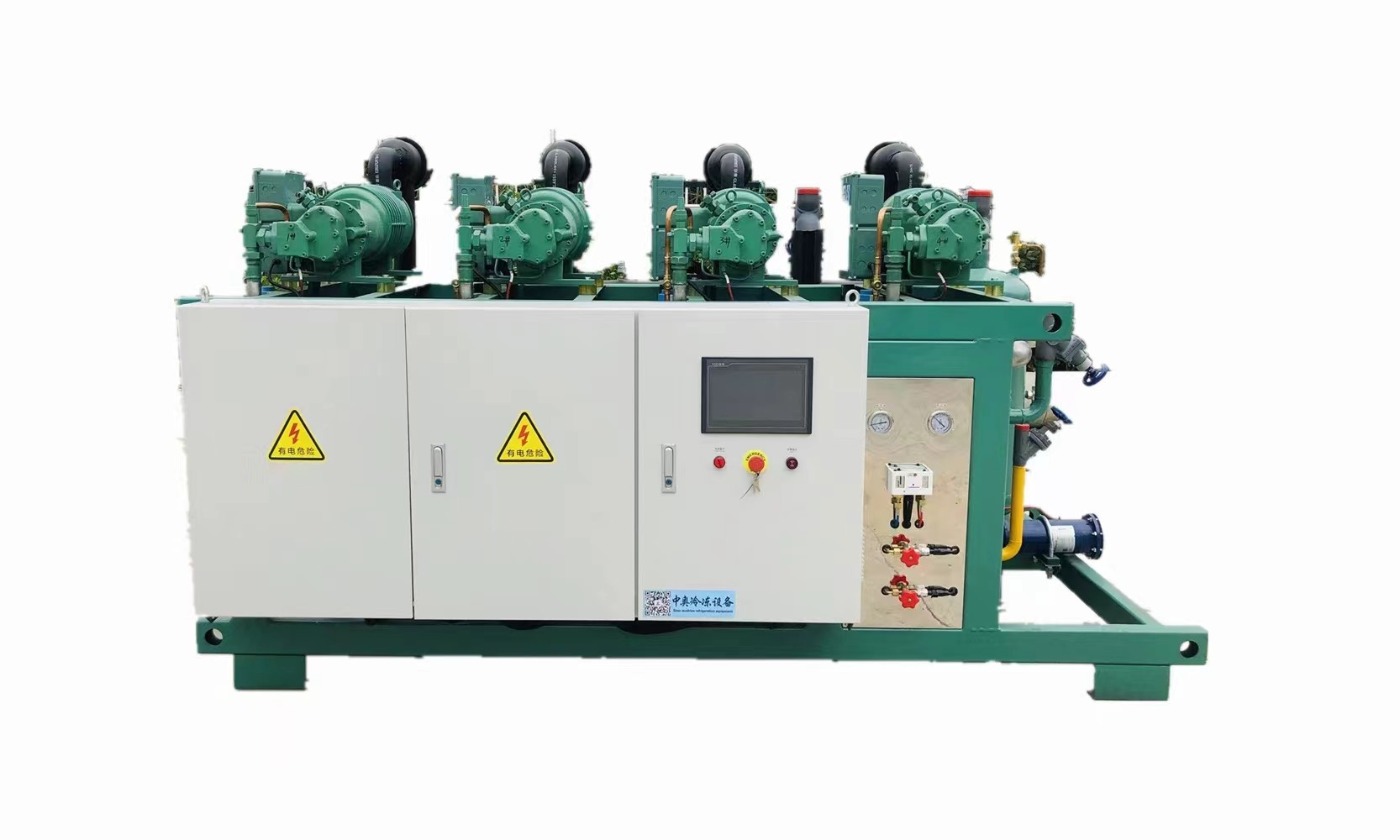

BITZER high-temperature screw compressor unit
- Product Item : BITZER high-temperature screw compressor unit
- Category： Screw refrigeration unit
- Compressor brand: BITZER
- Style: Semi-hermetic screw compressor
- Temp. Range(°C):-20~-40
- Application area: Cold room, blast freezer room
Main Components:
· Screw Compressor· Feed pipe ball valve
· Oil Controller
· Condenser
· Filter Barrel
· Spray System
· Sight Glass
· Control Box (PLC)
· Pressure gauge
· Pressure controller
· Pressure Sensor
· Inhale filter
|
Unit Model
|
Compressor Model |
Compressor
Number
|
Condensing
Temp.(℃)
|
Evaporation Temp.(℃) |
Reservoir
(L)
|
Supply
pipe
(mm）
|
Suction
pipe
(mm）
|
Gas Outlet
(mm)
|
Liquid
inlet pipe
(mm)
|
Dimension(mm)
(L×W×H)
|
|||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Cooling Capacity/Power Input (kw) | |||||||||||||||||||
| ZADLB-40HSK-G |
HSK5363
-40
(40HP)
|
1 | 35 | 61.7 | 21.4 | 75.0 | 22.2 | 90.2 | 23.0 | 107.6 | 23.8 | 127.4 | 24.5 | 100 | Φ28 | Φ89 | Φ76 | Φ28 | 2850×1800×1650 |
| 40 | 54.3 | 25.7 | 66.7 | 26.3 | 80.9 | 27.0 | 97.1 | 27.8 | 115.5 | 28.8 | |||||||||
| 45 | 46.4 | 31.3 | 57.7 | 31.7 | 70.7 | 32.3 | 85.5 | 33.0 | 102.5 | 33.7 | |||||||||
| ZABLB-80HSK-G | 2 | 35 | 123.4 | 42.8 | 150.0 | 44.4 | 180.4 | 46.0 | 215.2 | 47.6 | 254.8 | 49.0 | 200 | Φ57 | Φ133 | Φ89 | Φ76 | 3150×1900×1700 | |
| 40 | 108.6 | 51.4 | 133.4 | 52.6 | 161.8 | 54.0 | 194.2 | 55.6 | 231.0 | 57.6 | |||||||||
| 45 | 92.8 | 62.2 | 115.4 | 63.4 | 141.4 | 64.6 | 171.0 | 66.0 | 205.0 | 67.4 | |||||||||
| ZABLB-120HSK-G | 3 | 35 | 185.1 | 64.2 | 255.0 | 66.6 | 270.6 | 69.0 | 322.8 | 71.4 | 382.2 | 73.5 | 250 | Φ57 | Φ108×2 | Φ108 | Φ89 | 3950×1900×1750 | |
| 40 | 162.9 | 77.1 | 200.1 | 78.9 | 242.7 | 81.0 | 291.3 | 83.4 | 346.5 | 864.0 | |||||||||
| 45 | 139.2 | 93.9 | 173.1 | 95.1 | 212.1 | 96.9 | 256.5 | 99.0 | 307.5 | 101.1 | |||||||||
| ZABLB-160HSK-G | 4 | 35 | 246.8 | 85.6 | 300.0 | 88.8 | 360.8 | 92.0 | 430.4 | 95.2 | 504.6 | 98.0 | 300 | Φ57 | Φ133×2 | Φ133 | Φ89 | 4900×1900×1750 | |
| 40 | 217.2 | 102.8 | 266.8 | 105.2 | 323.6 | 108.0 | 388.4 | 1112 | 462.0 | 115.2 | |||||||||
| 45 | 185.6 | 125.2 | 230.8 | 126.8 | 282.8 | 129.2 | 342.0 | 132.0 | 410.0 | 134.8 | |||||||||
| ZADLB-50HSK-G |
HSK6451
-50
(50HP)
|
1 | 35 | 71.6 | 24.5 | 87.5 | 24.8 | 105.7 | 25.3 | 126.7 | 25.7 | 150.6 | 26.3 | 150 | Φ28 | Φ89 | Φ76 | Φ28 | 2850×1800×1650 |
| 40 | 62.8 | 30.1 | 77.3 | 30.2 | 94.0 | 30.4 | 113.3 | 30.8 | 135.4 | 31.6 | |||||||||
| 45 | 53.0 | 37.1 | 66.1 | 37.1 | 81.3 | 37.1 | 98.9 | 37.2 | 119.1 | 37.5 | |||||||||
| ZABLB-100HSK-G | 2 | 35 | 143.2 | 149.0 | 175.0 | 49.6 | 211.4 | 50.6 | 253.4 | 51.4 | 301.2 | 52.6 | 200 | Φ57 | Φ133 | Φ108 | Φ76 | 3200×1950×1700 | |
| 40 | 125.6 | 60.2 | 154.6 | 60.4 | 188.0 | 60.8 | 226.6 | 61.6 | 270.8 | 63.2 | |||||||||
| 45 | 106.0 | 74.2 | 132.2 | 74.2 | 162.6 | 74.1 | 197.8 | 74.4 | 238.2 | 75.0 | |||||||||
| ZABLB-150HSK-G | 3 | 35 | 214.8 | 73.5 | 262.5 | 74.4 | 317.1 | 77.1 | 380.1 | 77.1 | 451.8 | 78.9 | 300 | Φ57 | Φ108×2 | Φ108 | Φ89 | 4100×1950×1750 | |
| 40 | 188.4 | 90.3 | 231.9 | 90.6 | 28.2 | 91.2 | 339.9 | 92.4 | 406.2 | 94.8 | |||||||||
| 45 | 159.0 | 111.3 | 198.3 | 111.3 | 243.9 | 111.3 | 296.7 | 111.6 | 357.3 | 115.2 | |||||||||
| ZABLB-200HSK-G | 4 | 35 | 186.4 | 98.0 | 350.0 | 99.2 | 421.8 | 101.2 | 506.8 | 102.8 | 602.4 | 105.2 | 400 | Φ57 | Φ133×2 | Φ133 | Φ89 | 4950×1950×1750 | |
| 40 | 251.2 | 120.4 | 309.2 | 120.8 | 376.0 | 121.6 | 453.2 | 123.2 | 541.6 | 126.4 | |||||||||
| 45 | 212.0 | 148.4 | 264.4 | 148.4 | 325.2 | 148.4 | 395.6 | 148.8 | 476.4 | 150.0 | |||||||||
| ZADLB-60HSK-G |
HSK6461
-60
(60HP)
|
1 | 35 | 86.5 | 30.0 | 105.2 | 31.1 | 126.5 | 32.2 | 150.9 | 33.3 | 178.6 | 34.4 | 150 | Φ28 | Φ89 | Φ76 | Φ28 | 2850×1800×1650 |
| 40 | 76.2 | 36.1 | 93.6 | 36.9 | 113.5 | 37.9 | 136.2 | 39.0 | 162.0 | 40.3 | |||||||||
| 45 | 65.0 | 43.8 | 80.9 | 44.5 | 99.1 | 45.3 | 119.9 | 46.2 | 143.1 | 47.3 | |||||||||
| ZABLB-120HSK-G | 2 | 35 | 173.0 | 60.0 | 210.4 | 62.2 | 253.0 | 64.6 | 301.8 | 66.6 | 357.2 | 68.6 | 250 | Φ57 | Φ133 | Φ108 | Φ76 | 3200×1950×1700 | |
| 40 | 152.4 | 72.2 | 187.2 | 73.8 | 227.0 | 75.8 | 272.4 | 78.0 | 324.0 | 80.6 | |||||||||
| 45 | 130.0 | 87.6 | 161.8 | 89.0 | 198.2 | 90.6 | 239.8 | 92.4 | 287.4 | 94.6 | |||||||||
| ZABLB-180HSK-G | 3 | 35 | 259.5 | 90.0 | 315.6 | 93.3 | 379.5 | 96.6 | 452.7 | 99.9 | 535.8 | 103.2 | 350 | Φ57 | Φ108×2 | Φ108 | Φ89 | 4100×1950×1750 | |
| 40 | 228.6 | 108.3 | 280.8 | 110.7 | 340.5 | 113.7 | 408.6 | 117.0 | 486.0 | 120.9 | |||||||||
| 45 | 195.0 | 131.4 | 242.7 | 133.5 | 297.3 | 135.9 | 359.7 | 138.6 | 431.1 | 141.9 | |||||||||
| ZABLB-240HSK-G | 4 | 35 | 346.0 | 120.0 | 420.8 | 142.4 | 506.0 | 128.8 | 603.6 | 133.2 | 714.4 | 137.6 | 400 | Φ76 | Φ133×2 | Φ133 | Φ108 | 4950×1950×1800 | |
| 40 | 304.8 | 144.4 | 374.4 | 1476 | 454.0 | 151.6 | 544.8 | 156.0 | 648.0 | 161.2 | |||||||||
| 45 | 260.0 | 175.2 | 323.6 | 178.0 | 396.4 | 181.2 | 479.6 | 184.8 | 574.8 | 189.2 | |||||||||
| ZADLB-70HSK-G |
HSK7451
-70
(70HP)
|
1 | 35 | 106.4 | 31.6 | 129.6 | 36.0 | 136.4 | 36.0 | 187.2 | 35.9 | 222.5 | 35.7 | 150 | Φ28 | Φ89 | Φ76 | Φ28 | 2850×1800×1650 |
| 40 | 94.3 | 45.0 | 115.8 | 45.0 | 140.6 | 45.0 | 169.2 | 45.0 | 201.9 | 45.0 | |||||||||
| 45 | 78.4 | 56.0 | 98.1 | 55.9 | 121.0 | 55.7 | 147.2 | 55.6 | 177.3 | 55.4 | |||||||||
| ZABLB-140HSK-G | 2 | 35 | 212.8 | 72.2 | 259.2 | 72.0 | 312.8 | 72.0 | 374.4 | 71.8 | 445.0 | 71.4 | 300 | Φ57 | Φ133 | Φ89 | Φ76 | 3150×1900×1700 | |
| 40 | 188.6 | 90.0 | 231.6 | 90.0 | 281.2 | 90.0 | 338.4 | 90.0 | 403.8 | 90.0 | |||||||||
| 45 | 156.8 | 112.0 | 196.2 | 111.8 | 242.0 | 111.4 | 244.4 | 111.2 | 354.6 | 110.8 | |||||||||
| ZABLB-210HSK-G | 3 | 35 | 319.2 | 108.3 | 388.8 | 108.0 | 469.2 | 108.0 | 561.6 | 107.7 | 667.5 | 107.1 | 400 | Φ57 | Φ108×2 | Φ108 | Φ89 | 3950×1900×1750 | |
| 40 | 282.9 | 135.0 | 347.4 | 135.0 | 421.8 | 135.0 | 507.6 | 135.0 | 605.7 | 135.0 | |||||||||
| 45 | 235.2 | 168.0 | 294.3 | 167.7 | 363.0 | 167.1 | 441.6 | 166.8 | 531.9 | 166.2 | |||||||||
| ZABLB-280HSK-G | 4 | 35 | 425.6 | 144.4 | 518.4 | 144.0 | 625.6 | ||||||||||||
